Expected Variables Present — evp_process • expectedvariablespresent

This is a completeness module that will assess the presence of expected study variables and compute the distribution of these variables in the dataset. The user will provide the variables (evp_variable_file) of interest, including the name of the concept sets with the concepts used to define the variable. Sample versions of these inputs, both for OMOP and PCORnet, are included as data in the package and are accessible with expectedvariablespresent::. Results can optionally be stratified by site, age group, and/or time. This function is compatible with both the OMOP and the PCORnet CDMs based on the user's selection.

Usage

evp_process(
  cohort,
  omop_or_pcornet,
  evp_variable_file,
  multi_or_single_site = "single",
  anomaly_or_exploratory = "exploratory",
  output_level = "patient",
  age_groups = NULL,
  p_value = 0.9,
  time = FALSE,
  time_span = c("2012-01-01", "2020-01-01"),
  time_period = "year"
)

Arguments

cohort

tabular input || required

The cohort to be used for data quality testing. This table should contain, at minimum:

site | character | the name(s) of institutions included in your cohort
person_id / patid | integer / character | the patient identifier
start_date | date | the start of the cohort period
end_date | date | the end of the cohort period

Note that the start and end dates included in this table will be used to limit the search window for the analyses in this module.

omop_or_pcornet

string || required

A string, either omop or pcornet, indicating the CDM format of the data

omop: run the evp_process_omop() function against an OMOP CDM instance
pcornet: run the evp_process_pcornet() function against a PCORnet CDM instance

evp_variable_file

tabular input || required

A table with information about each of the variables that should be examined in the analysis. This table should contain the following columns:

variable | character | a string label for the variable captured by the associated codeset
domain_tbl | character | the CDM table where the variable is found
concept_field | character | the string name of the field in the domain table where the concepts are located
date_field | character | the name of the field in the domain table with the date that should be used for temporal filtering
vocabulary_field | character | for PCORnet applications, the name of the field in the domain table with a vocabulary identifier to differentiate concepts from one another (ex: dx_type); can be set to NA for OMOP applications
codeset_name | character | the name of the codeset that defines the variable of interest
filter_logic | character | logic to be applied to the domain_tbl in order to achieve the definition of interest; should be written as if you were applying it in a dplyr::filter command in R

To see an example of the structure of this file, please see ?expectedvariablespresent::evp_variable_file_omop or ?expectedvariablespresent::evp_variable_file_pcornet

multi_or_single_site

string || defaults to single

A string, either single or multi, indicating whether a single-site or multi-site analysis should be executed

anomaly_or_exploratory

string || defaults to exploratory

A string, either anomaly or exploratory, indicating what type of results should be produced.

Exploratory analyses give a high level summary of the data to examine the fact representation within the cohort. Anomaly detection analyses are specialized to identify outliers within the cohort.

output_level

string || defaults to patient

A string indicating the analysis level to use as the basis for the Multi Site, Anomaly Detection computations

Acceptable values are either patient or row

age_groups

tabular input || defaults to NULL

If you would like to stratify the results by age group, create a table or CSV file with the following columns and use it as input to this parameter:

min_age | integer | the minimum age for the group (i.e. 10)
max_age | integer | the maximum age for the group (i.e. 20)
group | character | a string label for the group (i.e. 10-20, Young Adult, etc.)

If you would not like to stratify by age group, leave as NULL

p_value

numeric || defaults to 0.9

The p value to be used as a threshold in the Multi-Site, Anomaly Detection, Cross-Sectional analysis

time

boolean || defaults to FALSE

A boolean to indicate whether to execute a longitudinal analysis

time_span

vector - length 2 || defaults to c('2012-01-01', '2020-01-01')

A vector indicating the lower and upper bounds of the time series for longitudinal analyses

time_period

string || defaults to year

A string indicating the distance between dates within the specified time_span. Defaults to year, but other time periods such as month or week are also acceptable

Value

This function will return a dataframe summarizing the distribution of each user-defined variable. For a more detailed description of output specific to each check type, see the PEDSpace metadata repository

Examples


#' Source setup file
source(system.file('setup.R', package = 'expectedvariablespresent'))

#' Create in-memory RSQLite database using data in extdata directory
conn <- mk_testdb_omop()

#' Establish connection to database and generate internal configurations
initialize_dq_session(session_name = 'evp_process_test',
                      working_directory = my_directory,
                      db_conn = conn,
                      is_json = FALSE,
                      file_subdirectory = my_file_folder,
                      cdm_schema = NA)
#> Connected to: :memory:@NA

#' Build mock study cohort
cohort <- cdm_tbl('person') %>% dplyr::distinct(person_id) %>%
  dplyr::mutate(start_date = as.Date(-5000), # RSQLite does not store date objects,
                                      # hence the numerics
                end_date = as.Date(15000),
                site = ifelse(person_id %in% c(1:6), 'synth1', 'synth2'))

#' Execute `evp_process` function
#' This example will use the single site, exploratory, cross sectional
#' configuration
evp_process_example <- evp_process(cohort = cohort,
                                   multi_or_single_site = 'single',
                                   anomaly_or_exploratory = 'exploratory',
                                   time = FALSE,
                                   omop_or_pcornet = 'omop',
                                   evp_variable_file = evp_variable_file_omop) %>%
  suppressMessages()
#> ┌ Output Function Details ──────────────────────────────────────┐
#> │ You can optionally use this dataframe in the accompanying     │
#> │ `evp_output` function. Here are the parameters you will need: │
#> │                                                               │
#> │ Always Required: process_output                               │
#> │ Required for Check: output_level                              │
#> │                                                               │
#> │ See ?evp_output for more details.                             │
#> └───────────────────────────────────────────────────────────────┘

evp_process_example
#> # A tibble: 1 × 9
#>   site  total_pt_ct total_row_ct variable_pt_ct variable_row_ct prop_pt_variable
#>   <chr>       <int>        <int>          <int>           <int>            <dbl>
#> 1 comb…           7           70              5               5            0.714
#> # ℹ 3 more variables: prop_row_variable <dbl>, variable <chr>,
#> #   output_function <chr>

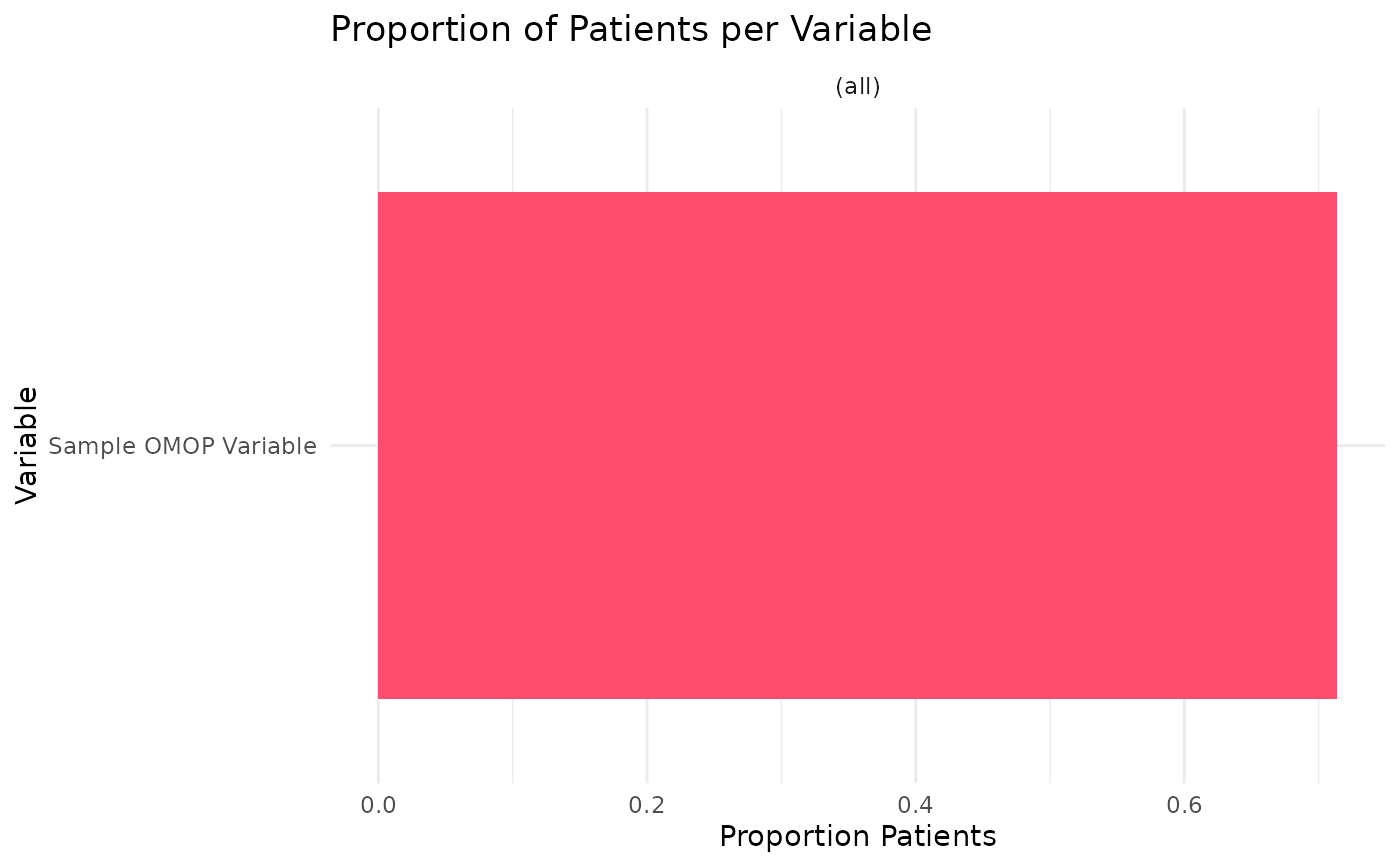

#' Execute `evp_output` function
evp_output_example <- evp_output(process_output = evp_process_example,
                                 output_level = 'patient')

evp_output_example


#' Easily convert the graph into an interactive ggiraph or plotly object with
#' `make_interactive_squba()`

make_interactive_squba(evp_output_example)
